ASBESTOS FREE(AF) FIBRE JOINTING SHEETS - AF120 Steam
Product Profile
A compressed synthetic Aramid fibre jointing sheet bonded with elastomers to create a matrix of stability..
Colour: Green
Service Conditions
Suitable for light industrial applications. Media : Water, Gases, Medium pressure Steam, Dilute Acids/Alkalies (Medium Service Conditions).
Max. Operating Pressure
50 bars
Max. Short term service temp.
400oC
Max. Continuous service temp.
250oC
Max. Operation temp. for steam
200oC

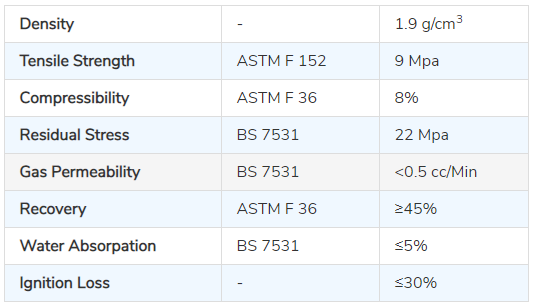

Typical Physical Properties

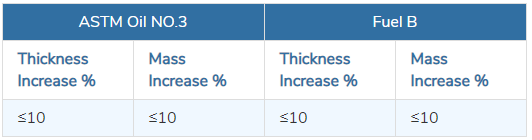

Fluid Resistance
Special density, thickness, shape or grade available on request.
