ASBESTOS FREE(AF) FIBRE JOINTING SHEETS - AF139 High Pressure
Product Profile
A high quality jointing sheet based on synthetic Aramid fibres bonded with NBR elastomer.
Colour: Orange
Service Conditions
Suitable for use in applications involving hydrocarbons such as oils and solvents, steam, gases, glycols and aqueous solutions. (Medium Service Conditions).
Max. Operating Pressure
25 bars
Max. Short term service temp.
300oC
Max. Continuous service temp.
250oC
Max. Operation temp. for steam
180oC

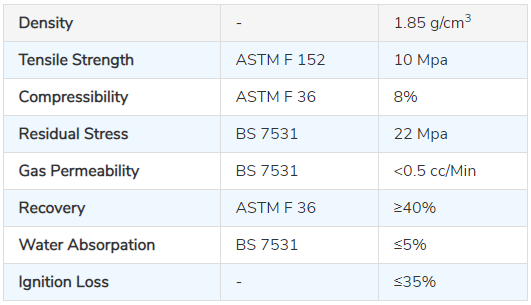

Typical Physical Properties

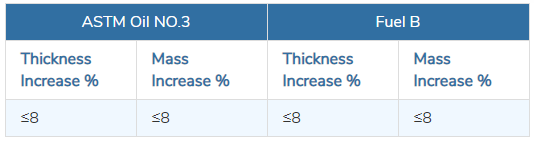

Fluid Resistance
Special density, thickness, shape or grade available on request.
